DCC Concepts DCP-CBSS-2 2x Cobalt-SS with Controller &#...



Manufacturer – DCC Concepts

Product number – DCP-CBSS-2

2x Cobalt-SS with Controller & Accessories

In stock

Purchase this product now and earn 60 Points!


Cobalt-SS 2 Pack – Small, Reliable, Super-Smooth Above-Board Turnout Motors, ready for DC or DCC use.

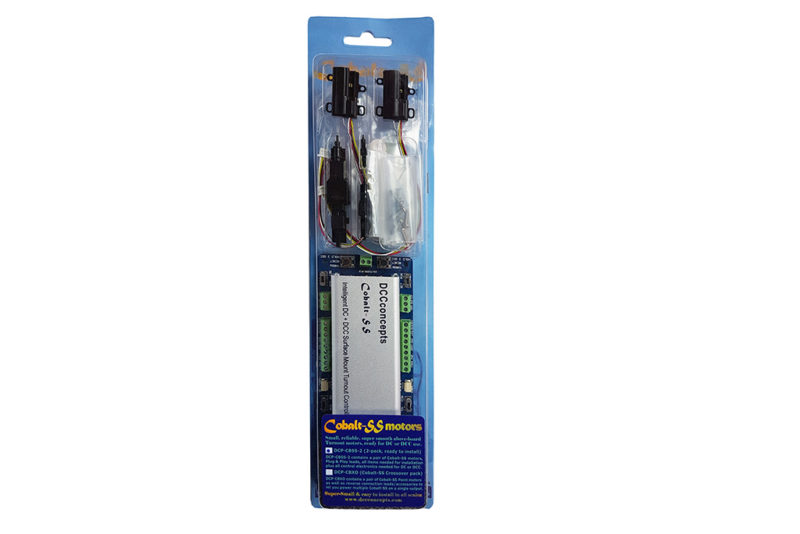

Cobalt-SS 2 Pack – This pack contains 2x Cobalt-SS Above-Board Point Motors with “Plug & Play” leads to connect to the Control Board. They are ready for installation and connection with everything needed already in the pack. Cobalt-SS can be powered by either DC or DCC systems. Operation is possible by DCC, conventional switches or both.

The pack also contains the following accessory leads and accessories:

1x Cobalt-SS Extension Cable (600mm) to enable one motor to be mounted further away from the Control Board.

1x Cobalt-SS Y-connection or reverse connection cable to enable two motors to be connected to one output on the Control Board.

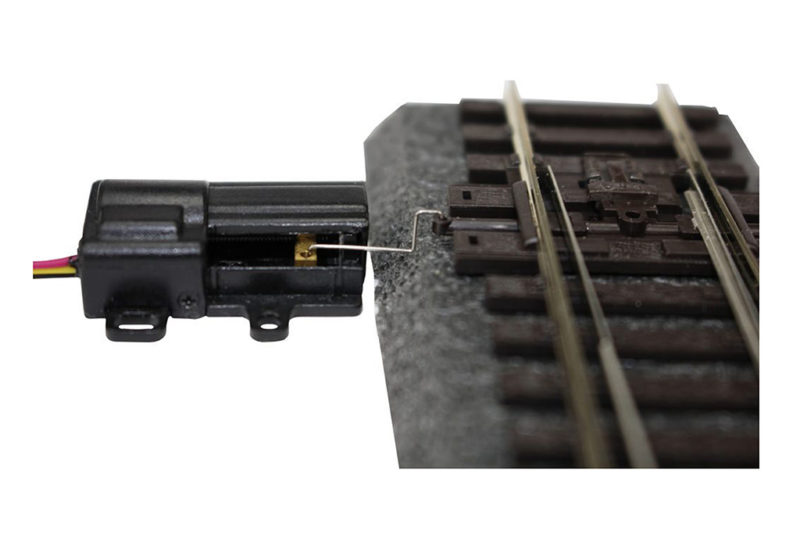

Linkage pack – to connect your Cobalt-SS motor to your turnout.

Mounting screws – to install both the Cobalt-SS motors and the control boards.

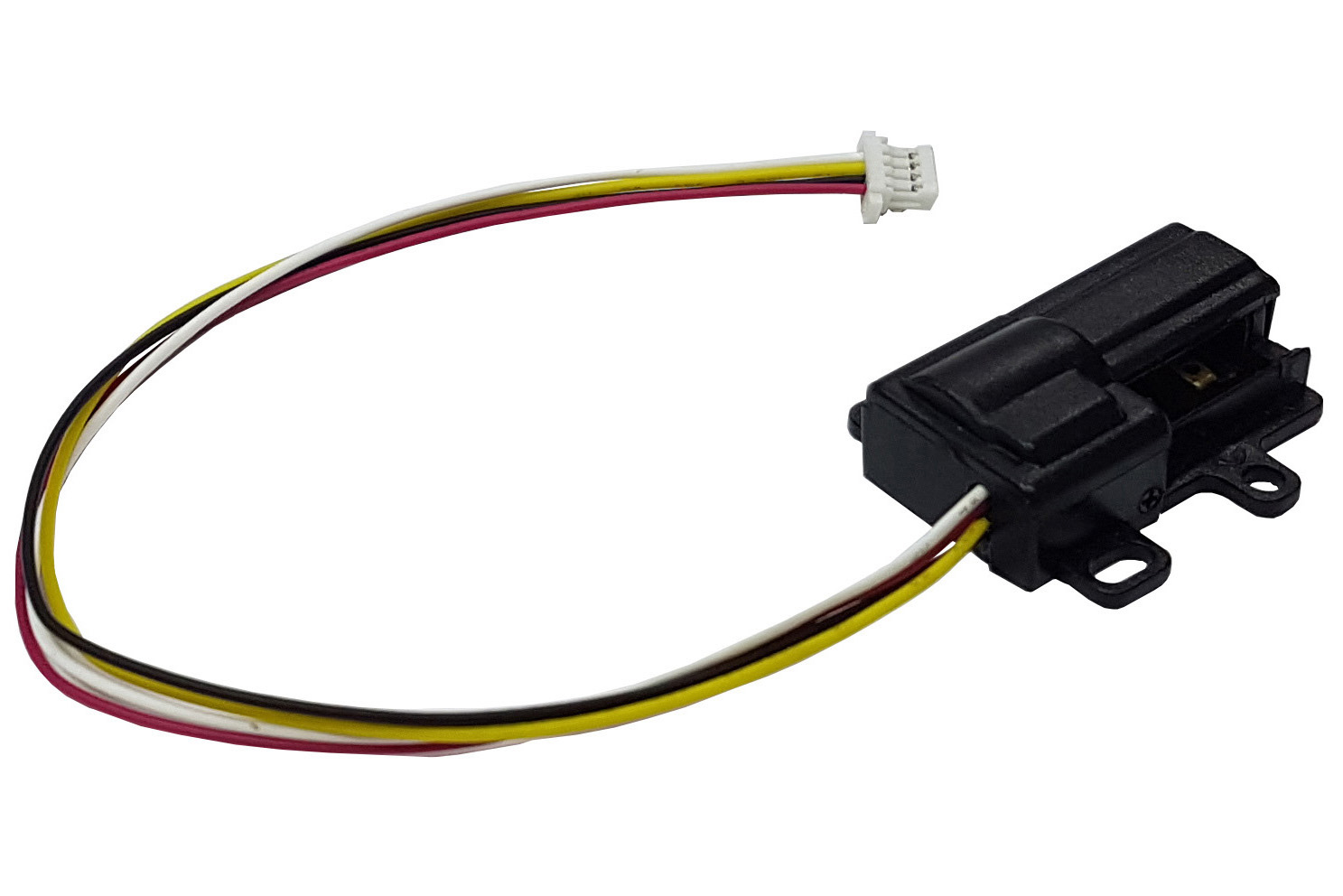

Motor Size:
Width 27mm
Depth 14mm
Height 11mm

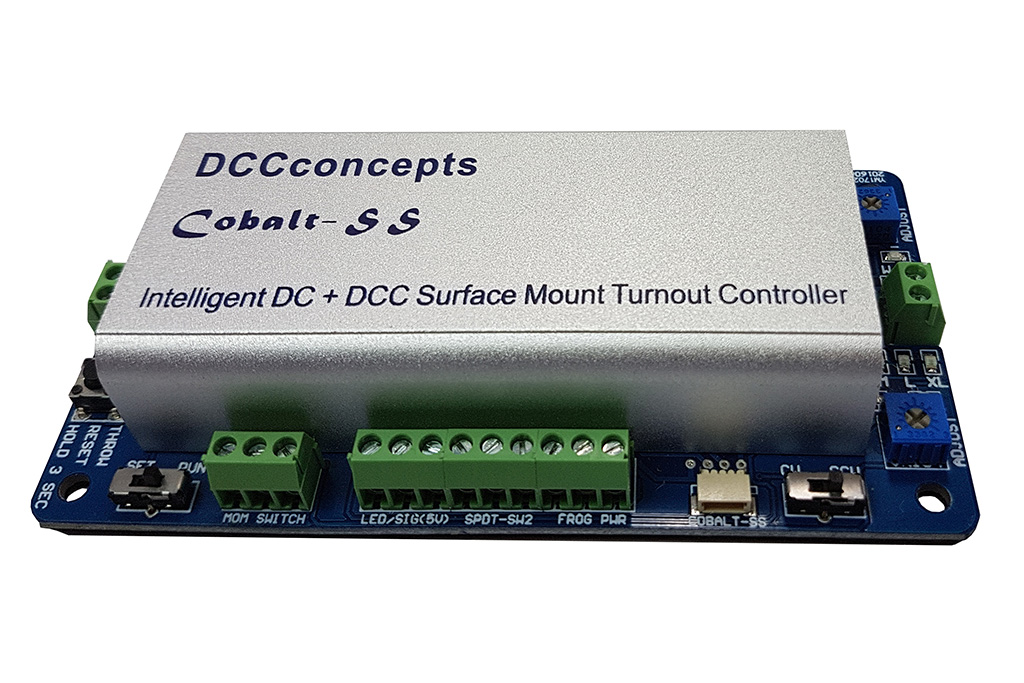

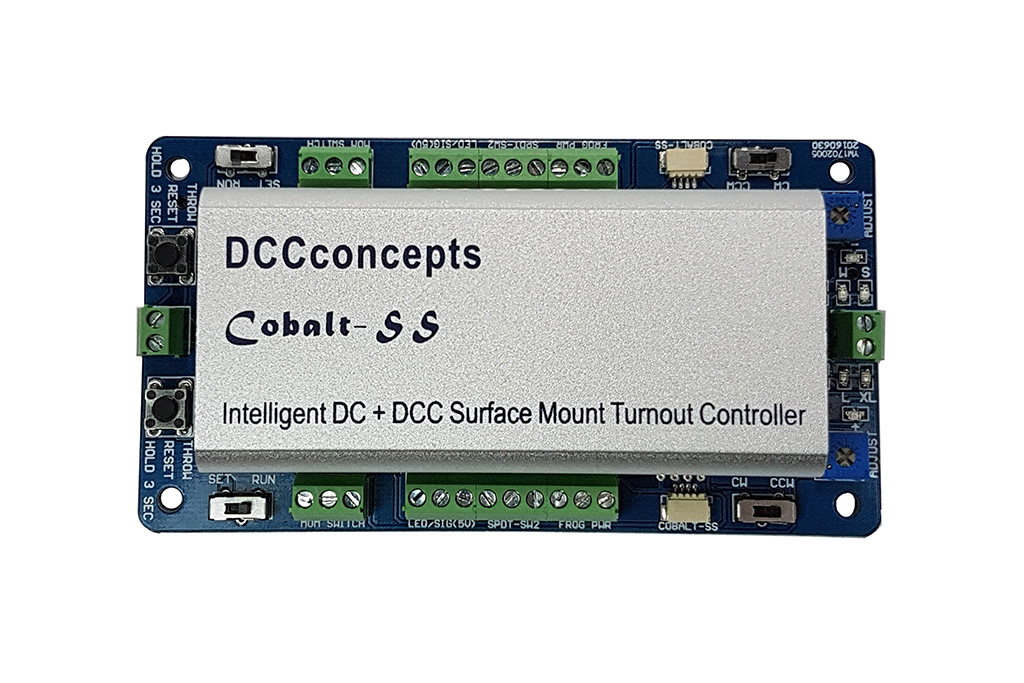

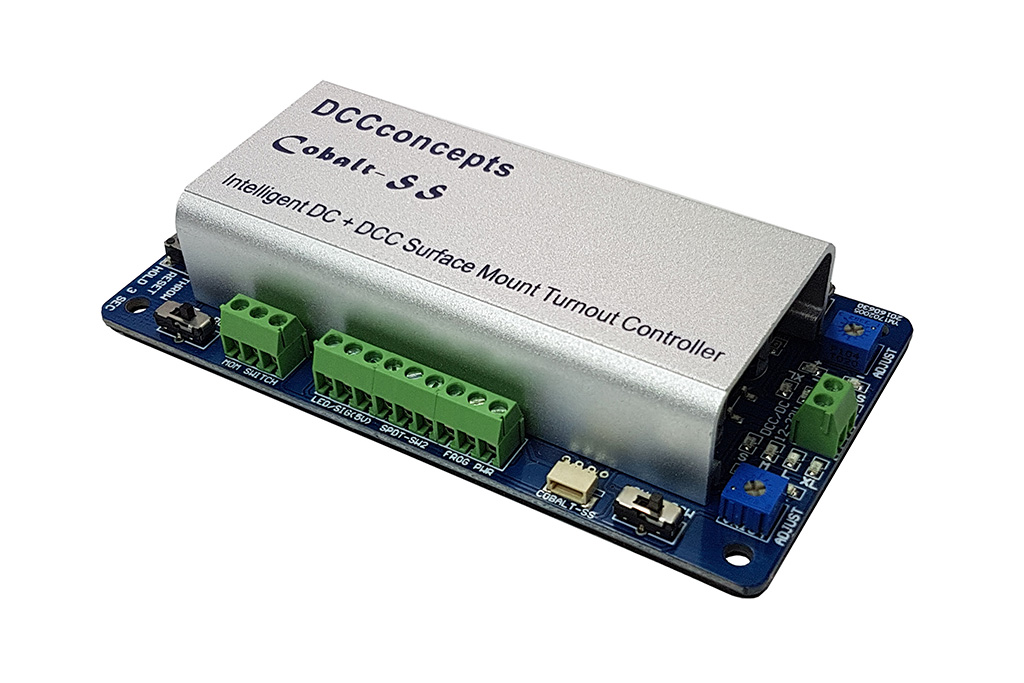

Control Board Size:
Width 115mm
Depth 60mm
Height 25mm
